Tadano /Oil & Steel has launched the new 30 metre Octoplus 30 spider lift at this months local trade shows, including JDL last weer and GIS this week, not to mention Vertikal Days.

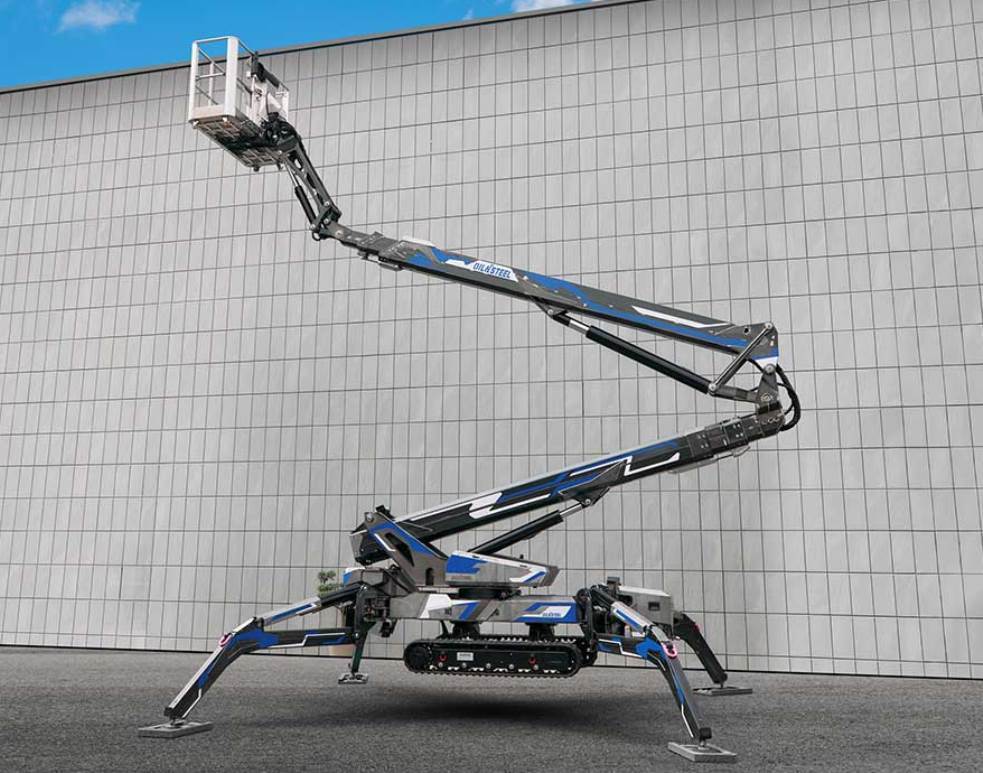

Unveiled as a pre-production unit at Bauma, the new machine, employs a three section telescopic riser whihc elevates to just over 80 degrees, topped by a three section boom and a jib with 180 degrees of articulation. The result is a maximum working height of 29.6 metres, up to 16 metres of outreach with 120kg in the platform, while the maximum platform capacity of 280 kg is available at just over 13 metres. Maximum up & over clearance height is 16 metres, although maximum outreach is limited to 14 metres at this height due to the nature of the long telescopic riser leaning to the rear.

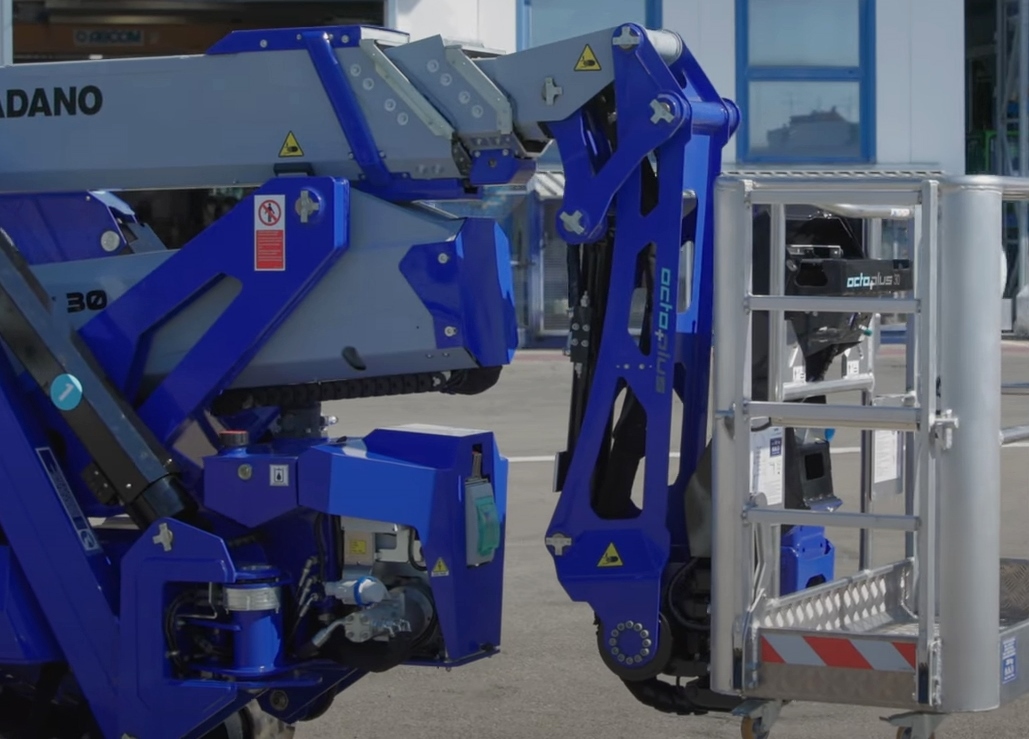

The new Octoplus 30 jib with 180° articulation
Overall width when stowed is 900mm, exending outwards and downwards when on site for additional stability, the overall length is 6.47 metres with an overall height of 1.98 metres. The outrigger footprint is 4.86 x 4.86 metres and total weight 4,950kg. At the moment the power choice is limited to diesel, all-electric and hybrid versions are in the development plan for a later introduction. Finally, a two year warranty is standard.

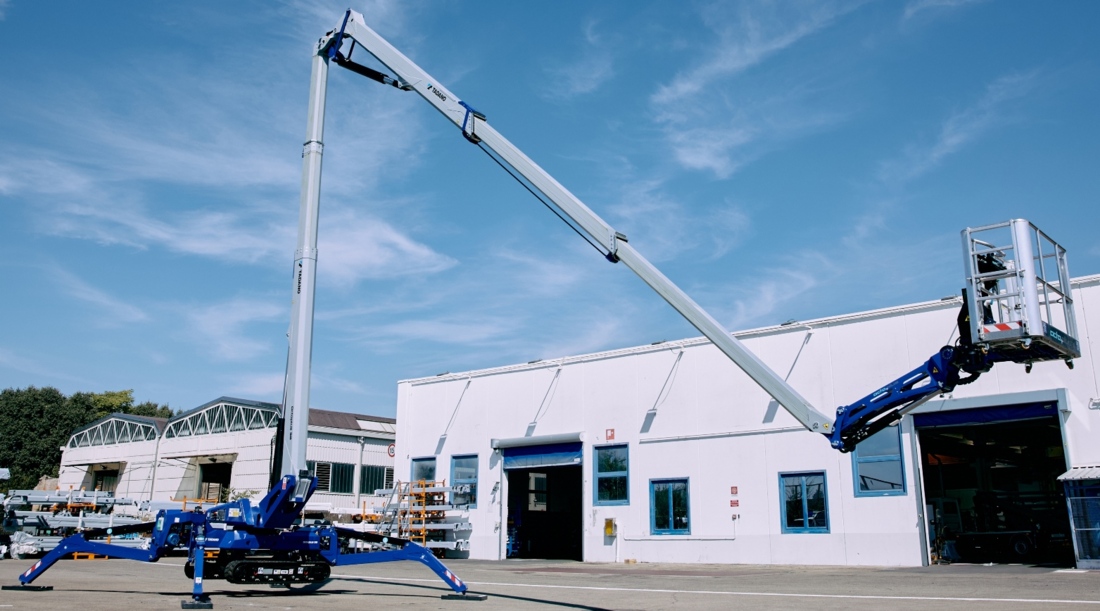

The video below shows the unit in action.
Vertikal Comment
This new machine and the 27 that will follow, show just how far the Italian company has come in terms of design and engineering. The new machines incorporate a level of structural sophistication way beyond that seen on the products that the company launched just a few years back. They are definitely worth a closer look if you are in Italy this week.
