10.12.2025

Zoomlion's new masts

Zoomlion has launched three new models with mast elevation mechanisms, two mast booms, the 10 metre ZMP08J and 11.2 metre ZMP09J, and a mast type lift, the 20 ft ZMP06G. All three feature AC direct drive electric motors and maintenance free batteries

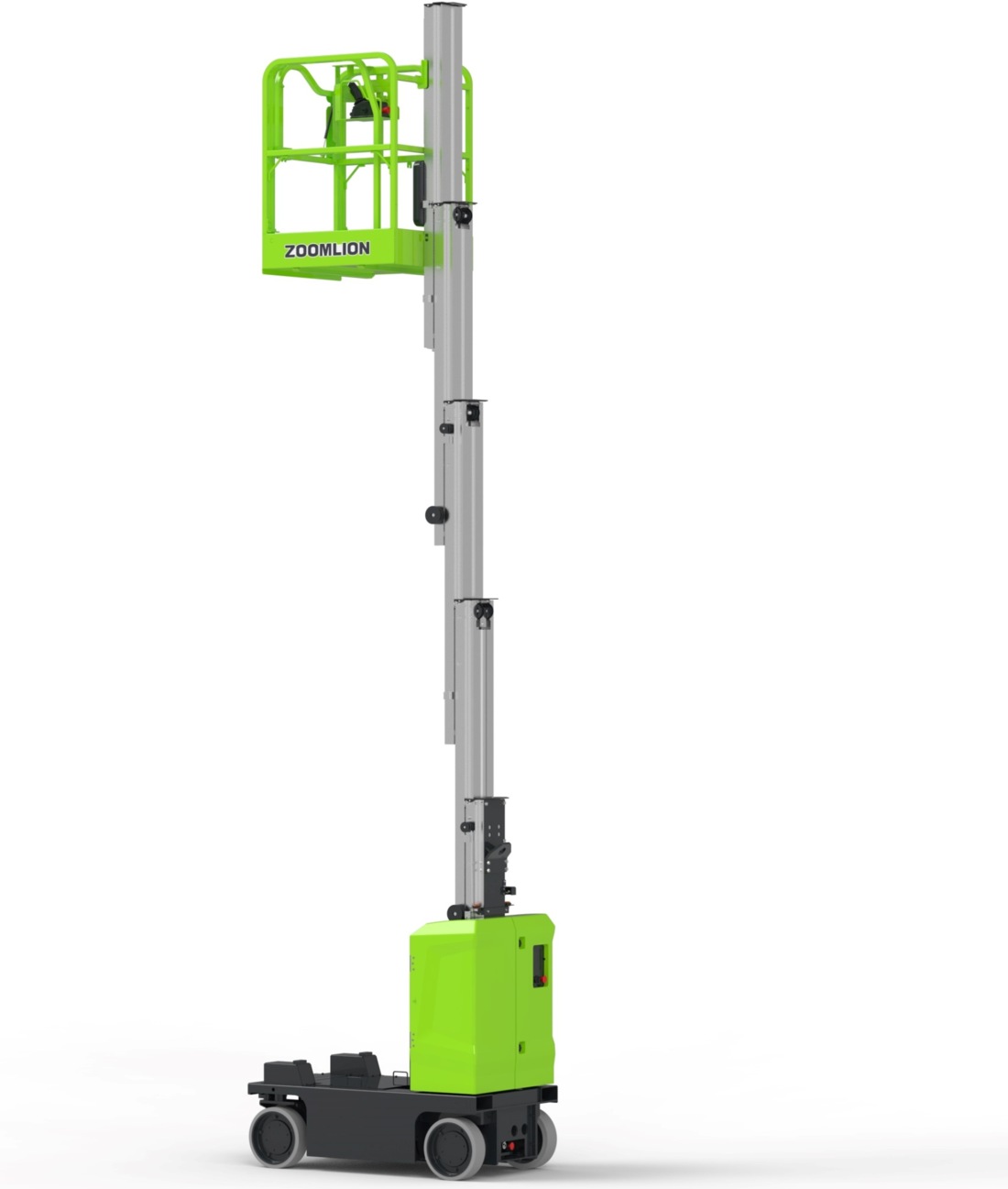

The ZMP06G uses a flat profile five section aluminium mast for an eight metre working height, a maximum platform capacity of 160kg in the 860mm long platform, which is equipped with a 500mm roll-out deck extension for a 1.36 metre by 760mm wide extended platform. The lift has an overall width of 800mm, an overall length of 1.45 metres, and a stowed height of 1.99 metres. The fully equipped machine weighs 980kg.

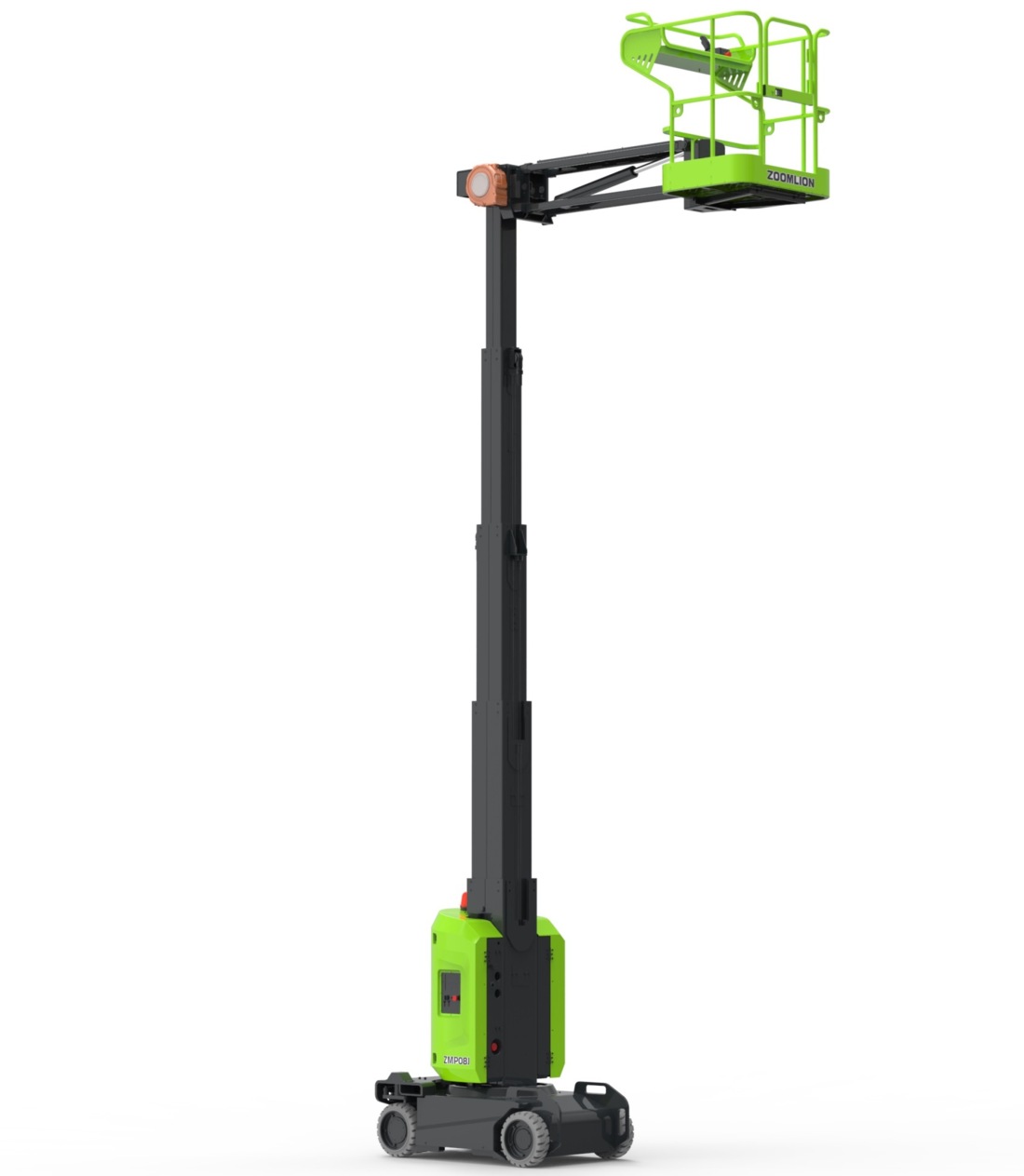

The ZMP08J is a classic 10 metre mast boom, with a five section box section steel mast and three metres of outreach with the jib horizontal at an up &over height of 6.6 metres. Maximum platform capacity is 200kg. The overall width is one metre, overall length when stowed 2,7 metres, and overall height 1.99 metres, the overall weight is 2,670kg. An ultrasonic collision detector and entrapment safety bar are standard.

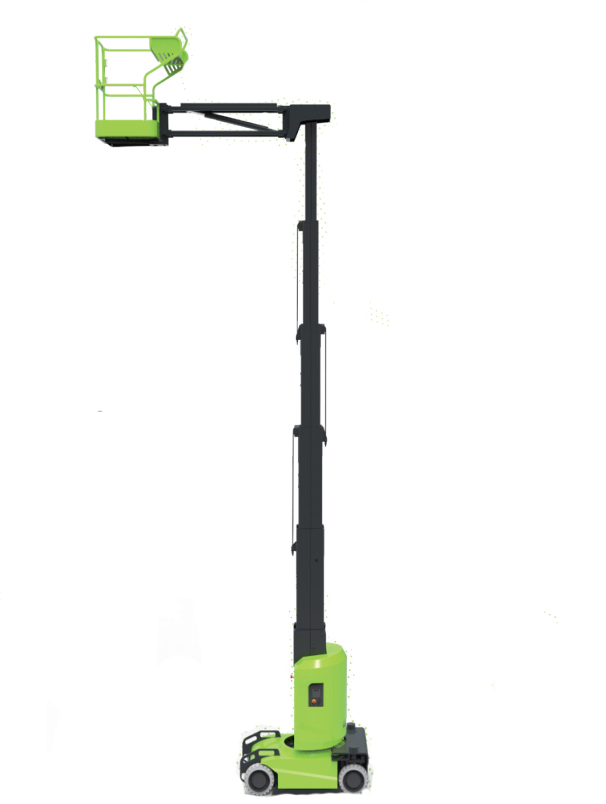

The 11.2 metre working height ZMP09J is pretty much the same machine as the 10 metre mast boom, but with an extra mast section to achieve the increased working height. It also has a slightly longer jib, which provides 3.23 metres of outreach at an up & over height of 7.75 metres. It retains the 200kg maximum platform capacity, and while the overall width, length and stowed height are the same as the ZMP08J, it is naturally heavier at 2,990kg. Both units are rated for indoor and outdoor use, but with only one person outside.

The company said: “With the new ZMP06G, we have achieved optimal solutions for narrow aisle warehouses, while the ZMP08J and ZMP09J mast booms provide the horizontal outreach without compromising compactness. Notable features are the maintenance free AC drive motor system and zero noise operation."
