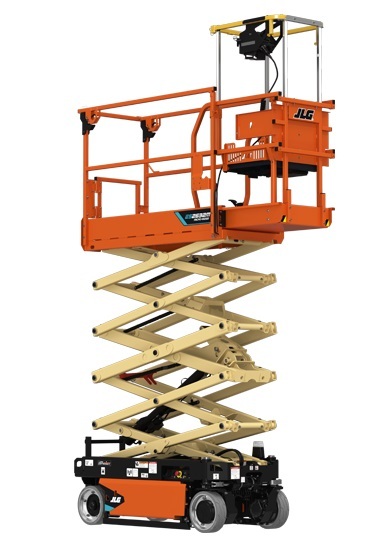

JLG has added a new 26ft micro scissor lift to its range, the ES2632M.
The ES2632M has a maximum working height of 9.77 metres and a platform capacity of 272kg. It joins JLG’s micro scissor range, which already includes the 13ft ES1330M, 15ft ES1530M and 19ft ES1930M.
It has an outdoor rated working height of 7.49 metres with one person. Overall width is 810mm, overall length 1.84 metres, and overall height when stowed 2.11 metres. Quick-Fold guardrails take the stowed height below two metres to pass through doors. An 860mm roll-out deck extension is standard, as is a leak-containment system. The all up weight is 2,060kg.
Options include AGM or Ion lithium-ion batteries and an integrated 560 x 580mm step-up platform, providing an additional 495mm of working height.

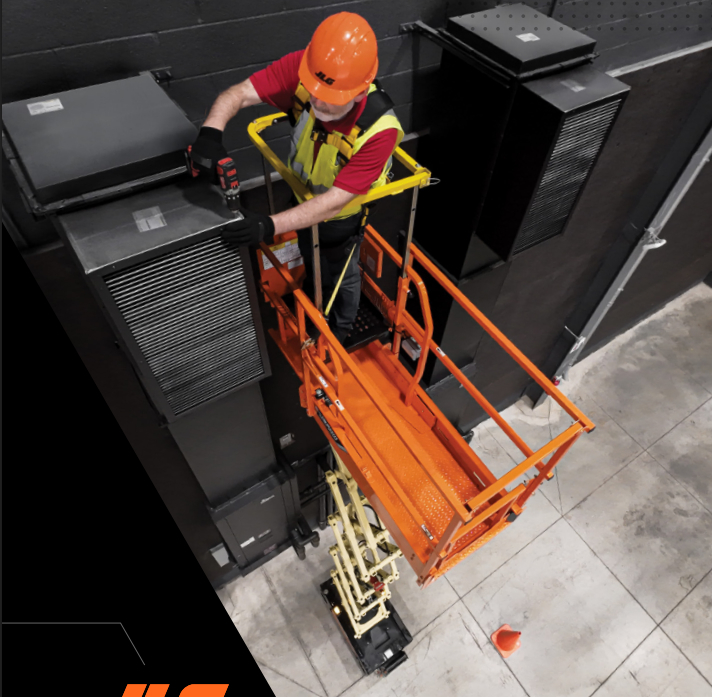

The step up mid rail deck in action
The new machine will be displayed at Conexpo in March.
Vertikal Comment
On the surface, not so micro, given it weighs over two tonnes, is over 1.8 metres long and is over two metres with guardrails raised. But, to be fair, it does boast a good working height and really decent platform capacity. We will run a full comparison with other machines on the market in the February Cranes & Access and add it to this item.
vertikal editor
Will leave your comment in place Eric, it should have been 1.8m long - not 1.8m wide!! -as you have pointed out -
.
We really appreciate errors like this being pointed out early on - there is nothing worse that discovering such an error after more than 10,000 people have opened the story and read it - and no one said anything.
.
So a big thank you
vertikal editor
Will leave your comment in place Eric, it should have been 1.8m long - not 1.8m wide!! -as you have pointed out -
.
We really appreciate errors like this being pointed out early on - there is nothing worse that discovering such an error after more than 10,000 people have opened the story and read it - and no one said anything.
.
So a big thank you
Eric_L
Small error in the Vertikal comment about the width (1.8M L, not W). Feel free to delete this after correction
