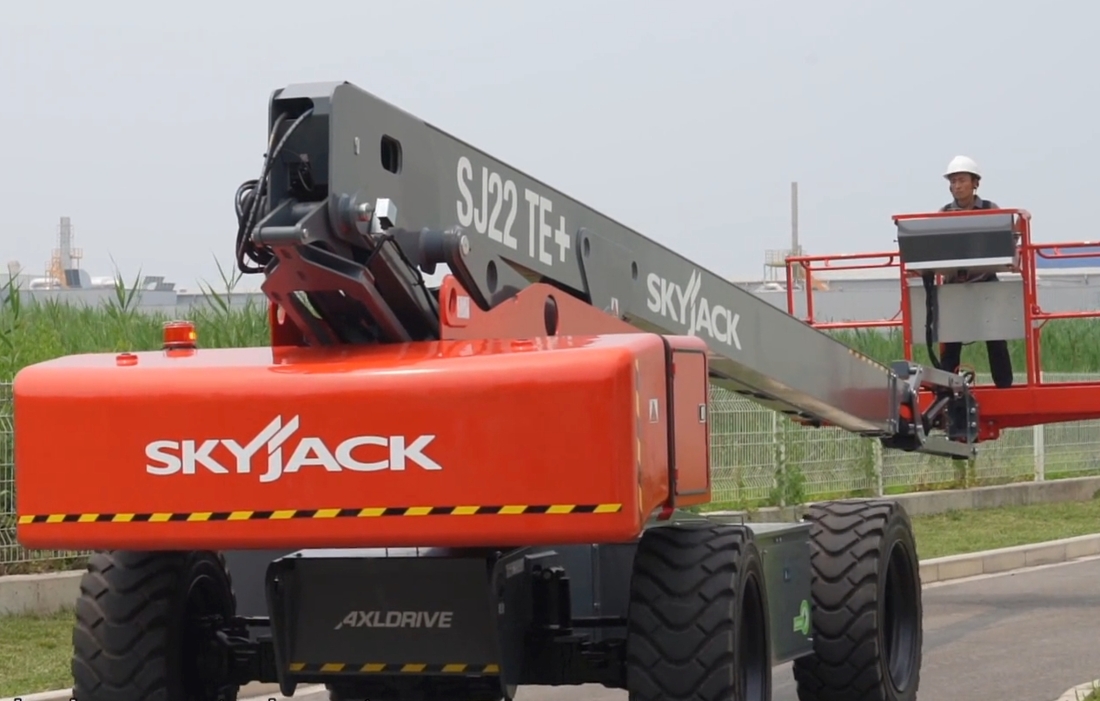

Skyjack has confirmed that its new 67ft SJ22 TE+ all electric Rough Terrain telescopic boom lift, developed for the Chinese and Southeast Asian markets, will be ready to ship from its plant in Tianjin next month.

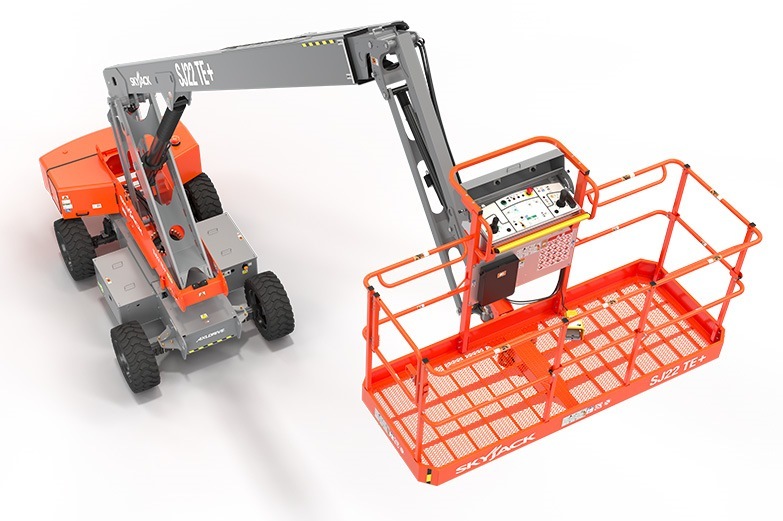

The SJ22TE is a sister machine to the 85ft SJ28 TE+ announced at the end of last year. It features a rising boom pivot point, three section boom and a jib with 230 degrees of articulation. All of which provides a working height of 22.3 metres, and a maximum outreach of 15.2 metres with 300kg in the platform, or 13.5 metres with the maximum platform capacity of 454kg.
The overall width is 2.5 metres, with an overall stowed length of 9.65 metres, with jib tucked under, and an overall stowed height of 2.65 metres or 2.57 metres with the jib out, although this extends the overall length to 11.94 metres. The overall weight is 10.5 tonnes.

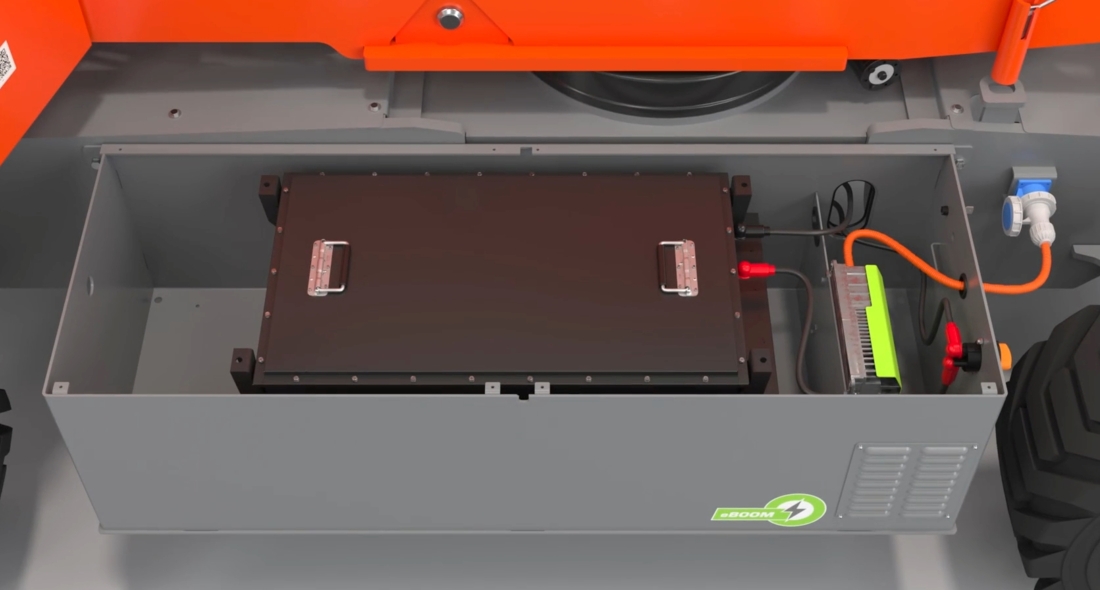

Power comes from a 460AH lithium-ion battery pack, which can be fully recharged in around five hours. It powers a large AC induction traction motor which drives all four wheels via Skyjack’s axle drive system, which includes a limited-slip differential on the front oscillating axle, with an operator controlled differential lock on the rear axle.
The hydraulics are powered by a separate AC motor-driven pump. Standard features include a secondary guarding system with last function auto reversal.
President Charlie Patterson said: “Skyjack became an industry leader by providing machine features that combine durability, quality, and serviceability. Our new electric telescopic boom range, designed for the Chinese and Southeast Asian markets, remains simply reliable and provides an environmentally friendly and sustainable choice for rental.”
The following video highlights the features of both the SJ22TE and SJ28 TE
