Chinese/Malaysian aerial lift manufacturer Noblelift has launched two new 'New Generation' slab electric micro scissor lifts, the 12ft SC06E and 15ft SC07E.

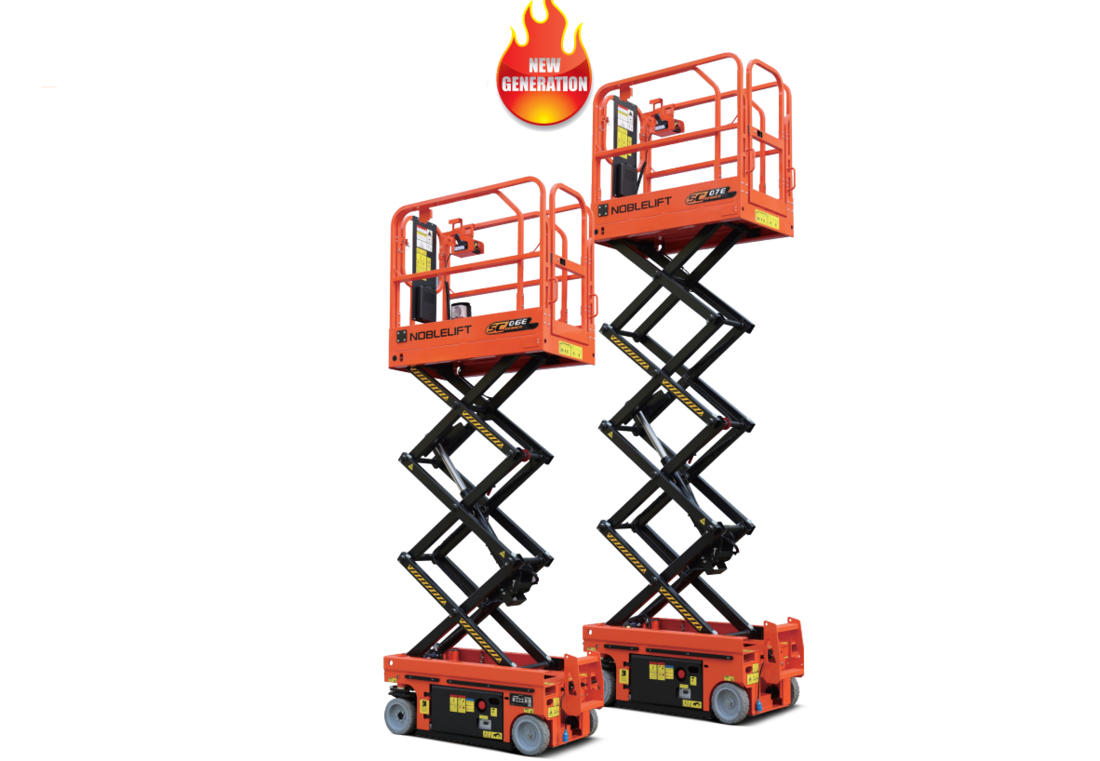

The new SC06E and SC07E
The SC06E offers a maximum working height of 5.7 metres and a platform capacity of 240kg, or two occupants with an outdoor working height limit of 3.7 metres. The lift has an overall width of 760mm, is 1.52 metres long, with a stowed height of 1.91 metres with the guardrails up. Platform dimensions are 1.36 metres by 740mm, with a standard 600mm roll-out deck. The overall weight is 990kg. Standard features include active automatic pothole protection, drive at full height and automatic gate locking.
Power is supplied by two 12V/100Ah batteries, powering twin front axle direct drive motors.
The specification on the 15ft SCO7E is almost identical, except it offers a 6.7 metre indoor working height - 5.7 metre outdoors, has an overall stowed height of 1.99 metres and weighs1.040kg.
Update Note
The original report contained a few technical errors, as it was based on the first generation. The confusion was caused by the company deciding to use the same model number, yet only having the old spec sheet on its website at the time, and not supplying one with the new product announcement. This second generation improves several issues with the original mode, with a modest reduction in the working height, which has allowed the overall stowed height with guardrails raised to come in under two metres, while also providing an outdoor rating. At the same time, key features, such as the overall width of 760mm, 240kg platform capacity and gross weight of less than a tonne have been retained. The 15ft model will also be of considerably more interest than the 10ft alternative of the first generation.
